Description

20’ × 36’ Modern A-Frame Cabin – Complete Architectural Plan Set (PDF)

Build your own 20’ × 36’ modern A-Frame cabin with this fully detailed architectural drawing set, designed for real construction use.

This professional plan package includes all essential drawings required to build the cabin from foundation to roof, with precise dimensions, structural layouts, and material specifications taken directly from the original construction documents.

Perfect for vacation homes, Airbnb rentals, off-grid cabins, or personal retreats.

What’s Included in the Plan Set (PDF)

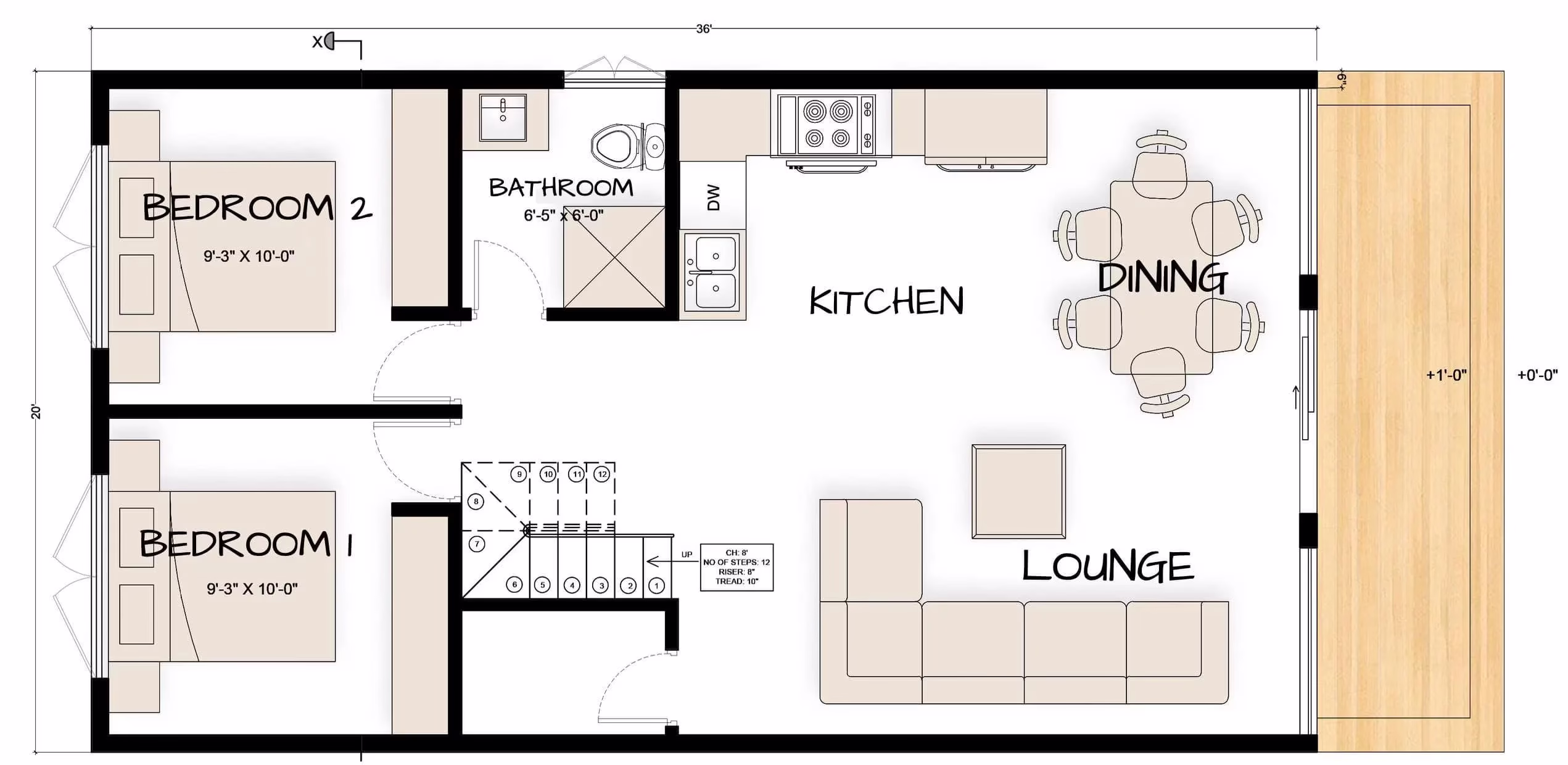

Ground Floor Plan

• Two bedrooms: 9′-3″ × 10′-0″

• Bathroom: 6′-5″ × 6′-0″

• Open-concept kitchen, dining, and living area

• Staircase leading to loft

• Front terrace: 11′-0″ × 6′-6″

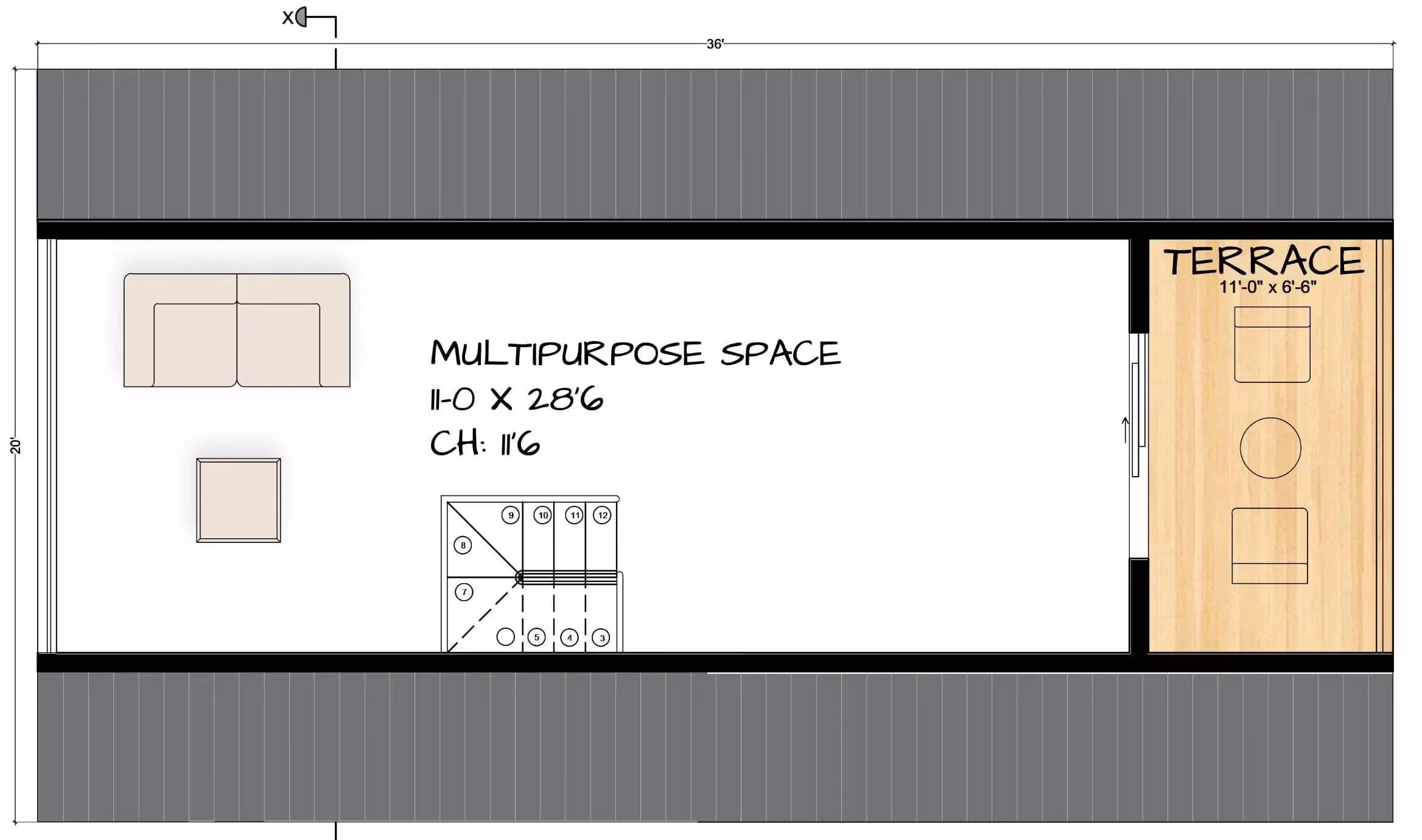

Loft (First Floor) Plan

• Large multi-purpose loft: 11′-0″ × 28′-6″

• Open view to A-frame glazing

• Access to upper terrace

Structural A-Frame Sections

• 24/12 roof slope

• Full A-frame structural system

• Ridge beam, rafters, collars, and framing details

• Height references:

  • Main floor level: +9′-6″

  • Ridge peak: +21′-6″

Sheathing

• Approx. 120 sheets – ¾” T&G OSB (main + loft floors)

• Approx. 40 sheets – ½” sheathing (walls & roof)

Additional Drawings

• Foundation plan

• Beam and framing layouts

• Electrical plans

• Plumbing layout

• Technical / mechanical room plans

Door & Window Schedules

Doors

• Sliding door: 6′-0″ × 7′-0″

• Interior doors: 2′-3″ × 6′-0″, 2′-6″ × 6′-0″

Windows

• Fixed window: 2′-0″ × 7′-0″

• Double windows: 3′-0″ × 4′-0″, 6′-0″ × 6′-0″

• Loft panoramic window: 11′-0″ × 7′-0″

Exterior Renders

• High-quality exterior visualizations showing overall design and proportions

Cabin Highlights

• Modern A-Frame architecture

• 2 bedrooms on the main level

• Spacious loft overlooking living area

• Front terrace

• Vaulted ceiling up to 21′-6″

• Ideal for Airbnb, vacation rental, or off-grid living

File Details

• Format: PDF

• Scale: Fully dimensioned & scalable

• Print: A4 / Letter compatible

• Delivery: Instant digital access after purchase

Important Notes

• Digital files only — no physical shipment

• Plans are intended for construction guidance

• Local building codes may require adjustments

• Always consult a licensed architect or engineer for regional compliance
